How do I adjust Signal Delay on my DQ-61 if I have a right handed driver car?

The DQ-61 signal delay function is calibrated for left hand driven cars.  In order to be able to use the signal delay function for right hand driven cars, we need to re-wire.

Specifically, we would need to flip the left and right inputs of the DQ-61 form the factory system.

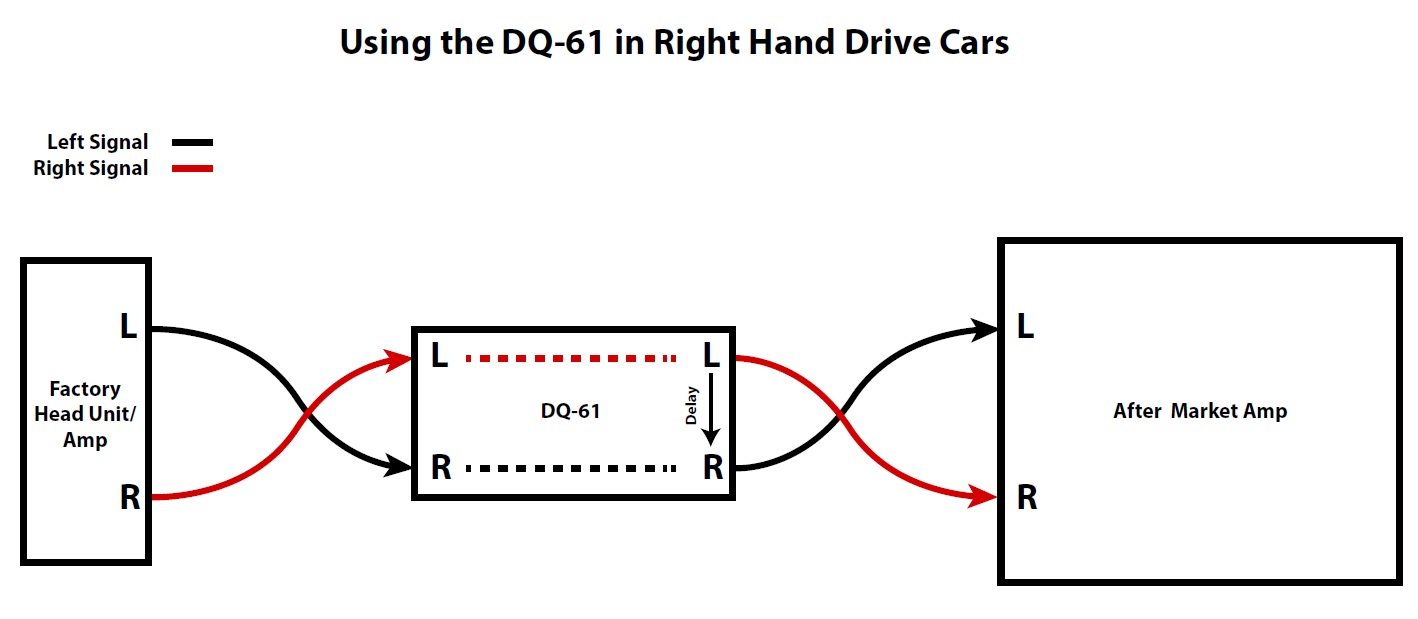

You would take the left output of the factory system and connect to the right input of the DQ-61, and the right output of the factory system and connect to the left input of the DQ-61. You would flip left and right again when connecting to the aftermarket amp. Left output of the DQ-61 will then go to the right input of the aftermarket amp.  Right output of the DQ-61 goes to the left input of the aftermarket amp.  Check out the diagram below for further reference.

Click on the diagram below to enlarge
